Unifold 1000



Steel IBC Bag-in-Box Containers

The TPS Unifold 1000 IBC is designed specifically for the storage and transportation of up to 275 gallons of liquid products. The Unifold 1000 containers are available...Read more


TPS-UNIFOLD-1000
Unifold 1000 549KB

Steel IBC Bag-in-Box Containers

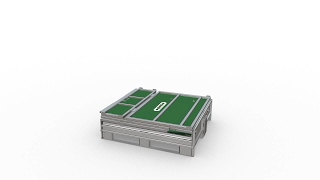

The TPS Unifold 1000 IBC is designed specifically for the storage and transportation of up to 275 gallons of liquid products. The Unifold 1000 containers are available for purchase or rent, with liquid liner bags, valves, glands and accessories used by the food, beverage, and specialty chemical industries. Advanced features of the Unifold 1000 have been developed by TPS to fulfill the market's needs and include through the front and base discharge, fully folding, full length drop side and no loose parts. Easy to clean and assemble by a single person, the Unifold 1000 features overcomes the shortcomings of many rival IBC bag-in-box systems and meets all of the hygiene standards of the food. cosmetics and personal care products industries.

Specifications

  • Frames: 30mm galvanized square steel tubes
  • Panels: 20 Gauge color coated sheet metal
  • Fittings: Galvanized soft steel
  • Pallet: Pallet galvanized soft steel base with 4-way forklift channels
  • Expected life with normal use: 10 years +
  • Compatible with ISO sea container
  • Fully recyclable all-steel modular construction

Capacity

  • Volume capacity: 270 Gallons / 1025 Ltr
  • External dimensions (LxWxH): 49 in. x 40 in. x 46 in. (1247 x 1018 x 1170mm)
  • Flat pack dimensions (LxWxH): 49 in. x 40 in. x 14.5 in. (1247 x 1018 x 370mm)
  • Tare weight: 346 lb (157 kg)
  • Maximum dynamic load: 2 tons
  • Maximum static load: 10 tons

Operating Capabilities

  • Free stacking height - erected: 5 units
  • Free stacking height - folded: 12 units
  • Return ratio per vehicle load space: 6:1 units
  • Functional temperature range: -22 to +150°F ( -30 to +65°C)
